How to clear CMOS on ASUS TUF GAMING X570-PLUS (WI-FI) Motherboard: 2 Methods

Summary: This article explains how to perform a BIOS, or CMOS reset and clear the NVRAM on your ASUS TUF GAMING X570-PLUS (or WI-FI) motherboard.

There are several possible causes for BIOS data corruption. Power outages, incorrect BIOS settings, hardware incompatibilities resulting from specific configurations, etc. Clearing CMOS to its original settings is a common solution in such circumstances to reset BIOS to factory defaults.

Some IT Engineers also recommend clearing CMOS and resetting BIOS before installing a new CPU on the ASUS TUF GAMING X570-PLUS (WI-FI) motherboard.

There are 2 methods to clear CMOS and reset BIOS on the ASUS TUF GAMING X570-PLUS WI-FI motherboard:

ASUS AM4 TUF Gaming X570-Plus (Wi-Fi) AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Motherboard…

$191.86

Buy now

1. Reset Your CMOS by Re-seating the CMOS Battery

A battery is used to maintain settings in the motherboard. One way to clear CMOS on the ASUS TUF GAMING X570-PLUS WI-FI motherboard is to remove and reseat the battery. Here’s how to do it:

1. Turn off your computer and unplug the power cord.
2. Press the power button multiple times to clear any charge in the PSU capacitors.
3. Locate the 3V CR2032 battery, gently remove it from the holder, and wait a few minutes to ensure the CMOS is clear.

4. Re-seat the battery into the holder.
5. Plug in the power cord and turn on your computer.

2. Reset Your CMOS with the Motherboard Jumper

The other way to clear CMOS on the ASUS TUF GAMING X570-PLUS WI-FI motherboard is to use the jumper. Here’s how to do it:

1. Turn off your computer and unplug the power cord.
2. Press the power button multiple times to clear any charge in the PSU capacitors.

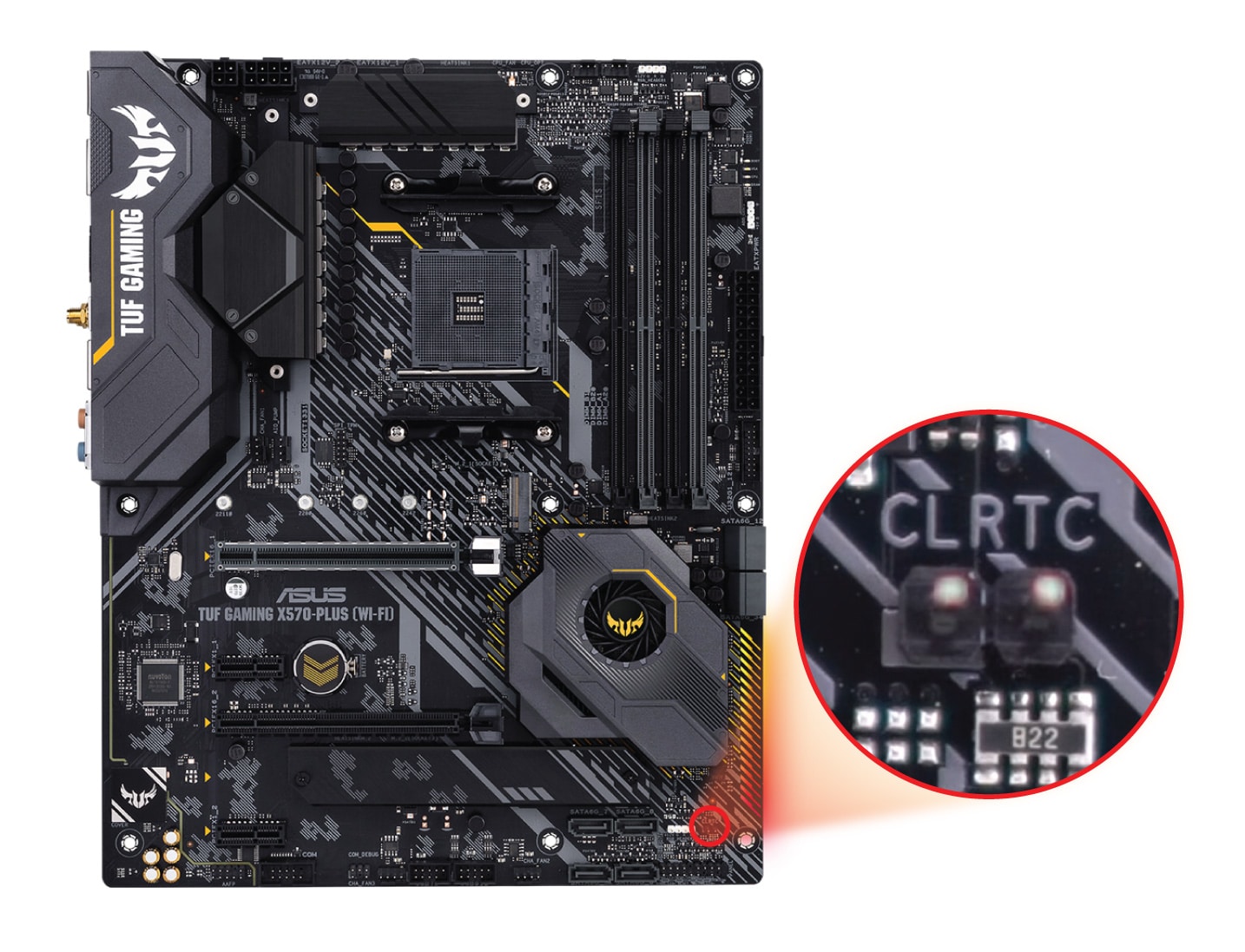

3. Locate the jumper with the label CLRTC next to it.

4. Use a metal object like a screwdriver to connect the two pins. Hold it for a few seconds.
5. Plug in the power cord and turn on your computer.

I hope you find this guide helpful.

Take care.
